Sensors

Aqua-Scope Leckage Protection Monitor

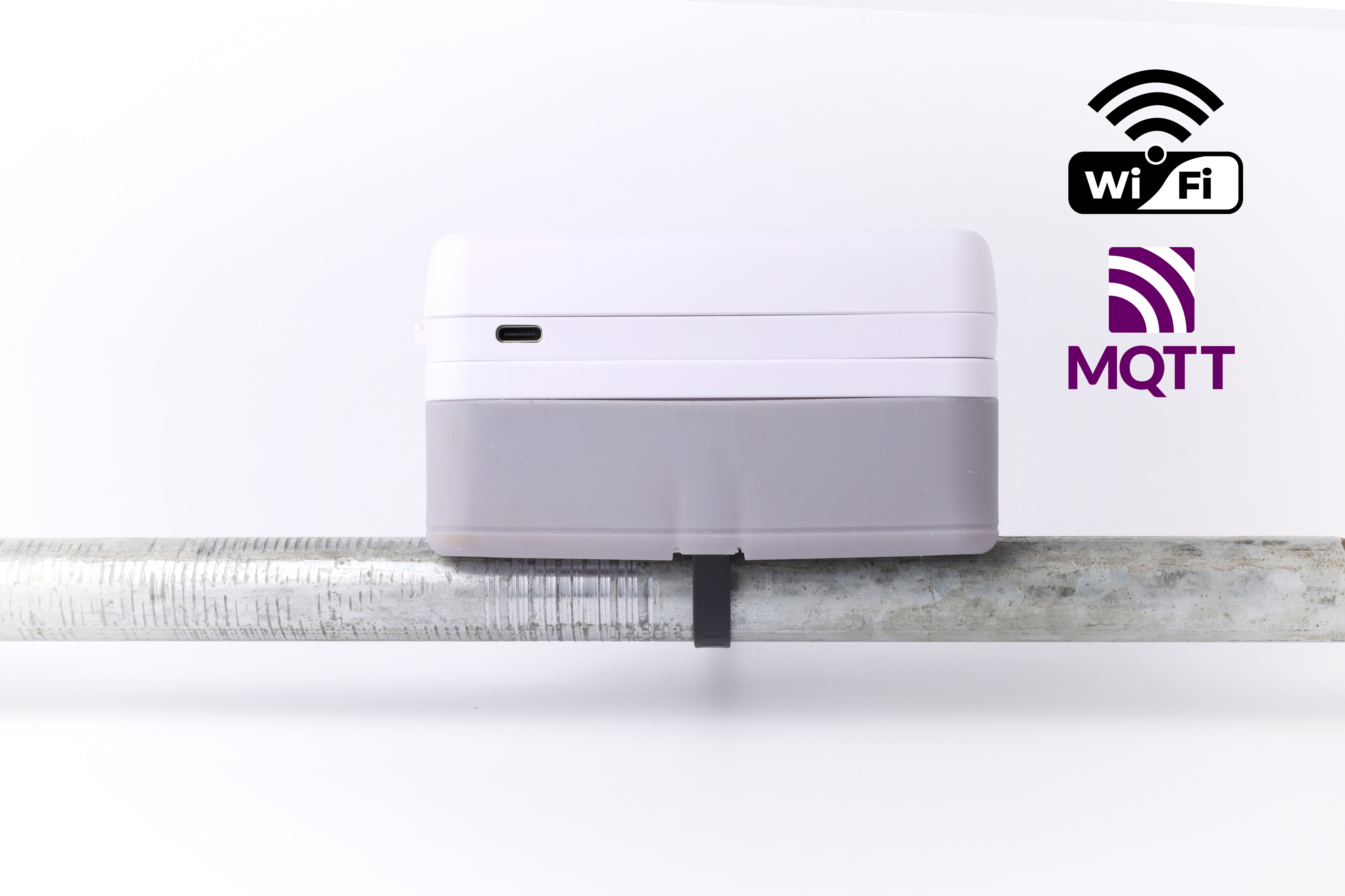

The Aqua-Scope water monitor detects leaks by analyzing pressure waves in the water supply. It continuously records the temperature, and water pressure. When leaks are detected or when pressure or temperature thresholds are exceeded or not reached, the user is alerted wirelessly. An additional wired flood sensor can be connected directly to the device, triggering an alarm when water is detected. The device consists of two parts: Main Unit (Monitor): Detects water consumption and leaks by analyzing pressure waves; Records temperature, water consumption, and water pressure continuously; Wireless alerts for detected leaks or when pressure or temperature thresholds are exceeded or not reached; Option to connect an additional wired flood sensor directly to the device. External Sensor Head: Connected to the water pipe, installed somewhere in the building at a 1/8-inch inspection opening, or with a provided T-piece under any sink at the angle valve. Thanks to the excellent sound characteristics of water, a single sensor somewhere in the house is sufficient to detect water consumption and leaks throughout the entire building. The device communicates via WLAN, either to the Aqua-Scope Cloud and thus to an app on your mobile phone or PC, or through MQTT to a server of your choice, or as a JSON object to a Smart Home Gateway. The device can be powered either by an external power supply with a USB-C adapter or by an optional internal ER26500 battery (Bobbin Cell C). Both the sensor head (IP67) and the main housing (IP65) are waterproof, allowing them to be used outdoors or in particularly damp and/or dirty environments.

Delivery time 1-3 days

Product number AQSWIE02

€199.00*

Aqua-Scope Leckage Protection/Water Consumption Monitor

The Aqua-Scope water monitor detects water consumption and leaks by analyzing pressure waves in the water supply. It continuously records the temperature, water consumption, and water pressure. When leaks are detected or when pressure or temperature thresholds are exceeded or not reached, the user is alerted wirelessly. An additional wired flood sensor can be connected directly to the device, triggering an alarm when water is detected. The device consists of two parts: Main Unit (Monitor): Detects water consumption and leaks by analyzing pressure waves; Records temperature, water consumption, and water pressure continuously; Wireless alerts for detected leaks or when pressure or temperature thresholds are exceeded or not reached; Option to connect an additional wired flood sensor directly to the device. External Sensor Head: Connected to the water pipe, installed somewhere in the building at a 1/8-inch inspection opening, or with a provided T-piece under any sink at the angle valve. Thanks to the excellent sound characteristics of water, a single sensor somewhere in the house is sufficient to detect water consumption and leaks throughout the entire building. The device communicates via WLAN, either to the Aqua-Scope Cloud and thus to an app on your mobile phone or PC, or through MQTT to a server of your choice, or as a JSON object to a Smart Home Gateway. The device can be powered either by an external power supply with a USB-C adapter or by an optional internal ER26500 battery (Bobbin Cell C). Both the sensor head (IP67) and the main housing (IP65) are waterproof, allowing them to be used outdoors or in particularly damp and/or dirty environments.

Delivery time 1-3 days

Product number AQXWIE02

€349.00*

Flood / Humidity / Temperature Sensor for AQS-LoRa

The Flood Sensor detects the presence of water on its sensor pins and sends an alarm message wirelessly when triggered. In addition, the device will regularly report the ambient temperature and humidity and send an alarm when the readings exceed thresholds that can be set for both humidity and temperature. The device itself is designed to sit on the floor, where 3 brass telescopic pins can detect water on both hard floors (tiles) and soft carpets. The unit comes with a mounting bracket. It can be screwed or taped to the wall or floor. When the main sensor is in the bracket, a super-flat sensor pad con-nected by wire to the bracket is used to detect water. When an alarm is active, the unit emits a sound and a red LED flash. The unit is powered by an internal CR123 battery that lasts approximately 10 years in normal operation. The device can be directly connected to an Aqua-Scope leak monitor and sends its information directly to the Aqua-Scope system.

Delivery time 1-3 days

Product number FLOLWE02

€49.00*

Flood / Humidity / Temperature Sensor for LoRaWAN

The Flood Sensor detects the presence of water on its sensor pins and sends an alarm message wirelessly when triggered. In addition, the device will regularly report the ambient temperature and humidity and send an alarm when the readings exceed thresholds that can be set for both humidity and temperature. The device itself is designed to sit on the floor, where 3 brass telescopic pins can detect water on both hard floors (tiles) and soft carpets. The unit comes with a mounting bracket. It can be screwed or taped to the wall or floor. When the main sensor is in the bracket, a super-flat sensor pad con-nected by wire to the bracket is used to detect water. When an alarm is active, the unit emits a sound and a red LED flash. The unit is powered by an internal CR123 battery that lasts approximately 10 years in normal operation. The device is controlled via LoRaWAN commands and operates as a LoRaWAN Class A device. The use of the device requires LoRaWAN network coverage. Otherwise, you need to install and operate your own LoRaWAN gateway.If you like to operate the device directy from a Aqua-Scope Monitor AQSWIE02, please use FLOLWE02.

Delivery time 1-3 days

Product number FLOLWE01

€49.00*

TIP

LoRain Rain Level Sensor for LoRaWAN

This rain sensor measures the amount of rain at its location in milliliters using a tipping bucket mechanism and transmits the quantity within a 15-minute interval with an accuracy of 0.5 mm of water column, along with the temperature. In the case of heavy rain exceeding 15 l/h, a heavy rain alarm is triggered promptly. Both the heavy rain threshold and the measurement interval are configurable. The device is entirely open-source, and both hardware and firmware can be downloaded from https://github.com/aqua-scope/lorain. The device is controlled via LoRaWAN commands and operates as a LoRaWAN Class A device. The use of the device requires LoRaWAN network coverage. Otherwise, you need to install and operate your own LoRaWAN gateway. The device is powered by two AAA batteries. The provided VARTA batteries allow for an approximate runtime of about 2 years. A low battery level is reported wirelessly, allowing for battery replacement before the device shuts down.

Delivery time 1-3 days

Product number RANLWE01

€69.00*

Water Pressure Sensor for LoRaWAN

The Aqua-Scope pressure sensor records the water pressure in the drinking water distribution or in the hot water heating system. The device consists of two parts: The main housing for signal processing and wireless communication with a battery compartment. The external sensor head, which is connected to the water pipe. The stainless steel sensor head features a silicon sensor suspended in silicone oil for highly accurate and low-noise pressure measurements. The pressure measurement range is between 1 to 10 bar. The sensor head is installed somewhere in the building at a 1/8-inch inspection opening or with a provided T-piece under any sink at the angle valve. The sensor can send an alarm message when predefined threshold values are exceeded or not reached. The polling frequency of the sensor is adjustable between 0.1 seconds and several minutes, defining the battery life. For a measurement interval of 1 second, a battery life of approximately 10 years is calculated. The device is controlled via LoRaWAN commands and operates as a LoRaWAN Class A/C device. The use of the device requires LoRaWAN network coverage. Otherwise, you need to install and operate your own LoRaWAN gateway. The device can be powered either by an external power supply with a USB-C adapter or by an optional internal ER26500 battery (Bobbin Cell C). Both the sensor head (IP67) and the main housing (IP65) are waterproof, allowing them to be used outdoors or in particularly damp and/or dirty environments.

Delivery time 1-3 days

Product number PRELWE02

€199.00*

TIP

WIFI Rainlevelsensor

This rain sensor measures the amount of rain at its location in milliliters using a tipping bucket mechanism and transmits the quantity within a 15-minute interval with an accuracy of 0.5 mm of water column, along with the temperature. In the case of heavy rain exceeding 15 l/h, a heavy rain alarm is triggered promptly. Both the heavy rain threshold and the measurement interval are configurable. The device is entirely open-source, and both hardware and firmware can be downloaded from https://github.com/aqua-scope/lorain. The device communicates via WLAN, either to the Aqua-Scope Cloud and thus to an app on your mobile phone or PC, or through MQTT to a server of your choice, or as a JSON object to a Smart Home Gateway. The device is powered by two AAA batteries. The provided VARTA batteries allow for an approximate runtime of about 2 years. A low battery level is reported wirelessly, allowing for battery replacement before the device shuts down.

Delivery time 1-3 days

Product number RANWIE01

€59.00*

WIFI Water Pressure Sensor

The Aqua-Scope pressure sensor records the temperature and pressure of the water. The device consists of two parts: Main housing for signal processing and radio communication with battery compartment. The external sensor head is connected to the water pipe. The stainless steel sensor head has a silicon sensor mounted in silicone oil for highly accurate and low-noise pressure measurements in a wide operating range. The measuring range for pressure is between 1 and 10 bar. The sensor values are converted into digital values directly in the measuring head to suppress interference from the connection to the main housing. In addition, the temperature of the liquid medium is measured directly at the stainless steel diaphragm and is therefore very precise. The sensor can send an alarm message if freely definable threshold values are exceeded or not reached. The sensor's polling frequency can be set between 0.1 second and several minutes and defines the battery life. For a measuring interval of 1 second, a battery life of approx. 10 years is calculated. The device connects to WIFI. Your mobile app help setting up the connection and gives access the data and presents current and historical values and events. The device is powered either via an external power supply with USB-C power supply unit or via an optional internal ER26500 battery (Bobbin Cell C). Both the sensor head (IP67) and the main housing (IP65) are waterproof and can be used outdoors or in particularly humid and/or dirty environments.

Delivery time 1-3 days

Product number PREWIE02

€199.00*
