Flood / Humidity / Temperature Sensor for AQS-LoRa
The Flood Sensor detects the presence of water on its sensor pins and sends an alarm message wirelessly when triggered. In addition, the device will regularly report the ambient temperature and humidity and send an alarm when the readings exceed thresholds that can be set for both humidity and temperature.

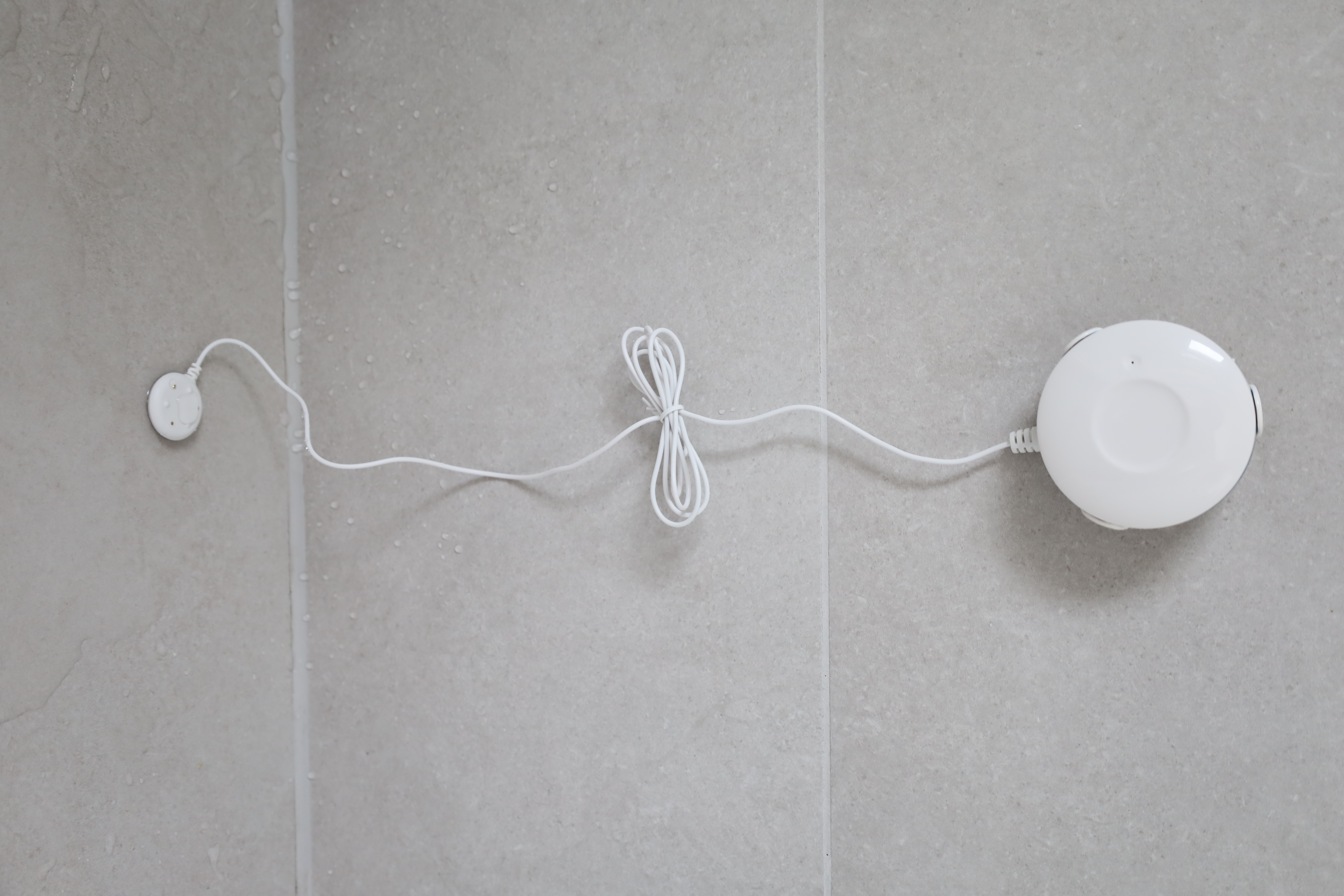

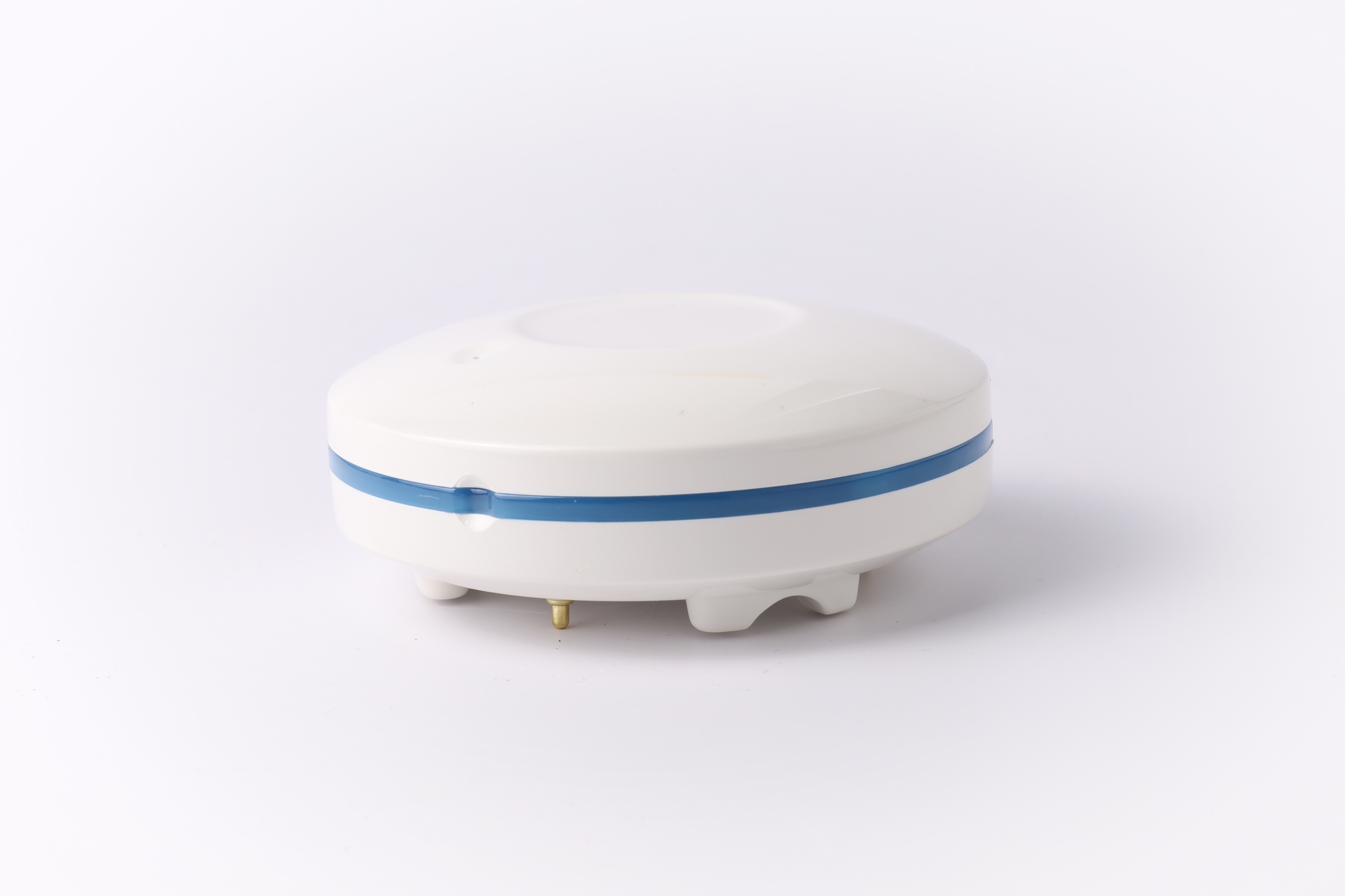

The device itself is designed to sit on the floor, where 3 brass telescopic pins can detect water on both hard floors (tiles) and soft carpets. The unit comes with a mounting bracket. It can be screwed or taped to the wall or floor. When the main sensor is in the bracket, a super-flat sensor pad con-nected by wire to the bracket is used to detect water.
When an alarm is active, the unit emits a sound and a red LED flash. The unit is powered by an internal CR123 battery that lasts approximately 10 years in normal operation.
The device can be directly connected to an Aqua-Scope leak monitor and sends its information directly to the Aqua-Scope system.
