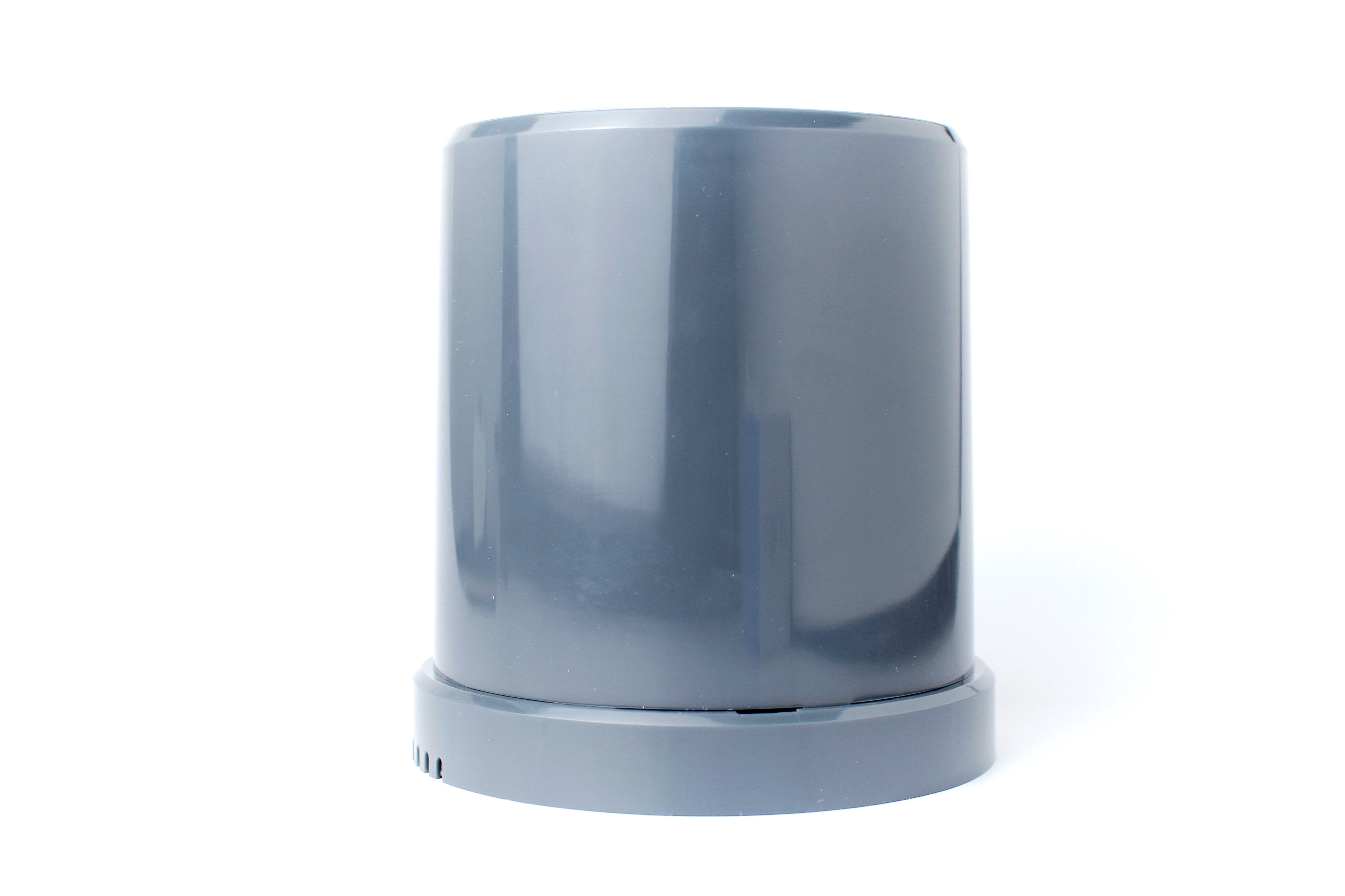

Rain gauge LoRaWAN

€59,00
€20,00 €59,00
Tax included. Shipping calculated at checkout.
ConnectivityLoRaWAN
power supply2xAAA batteries
Installation locationOutdoors, exposed to the elements
App SupportThird-party app via LoRa
Availability: In stock
SKU: RANLWE01
EAN: 4251295783208
Regenmesser LoRaWAN - Aqua - Scope - Aqua - Scope
€59,00
€20,00 €59,00

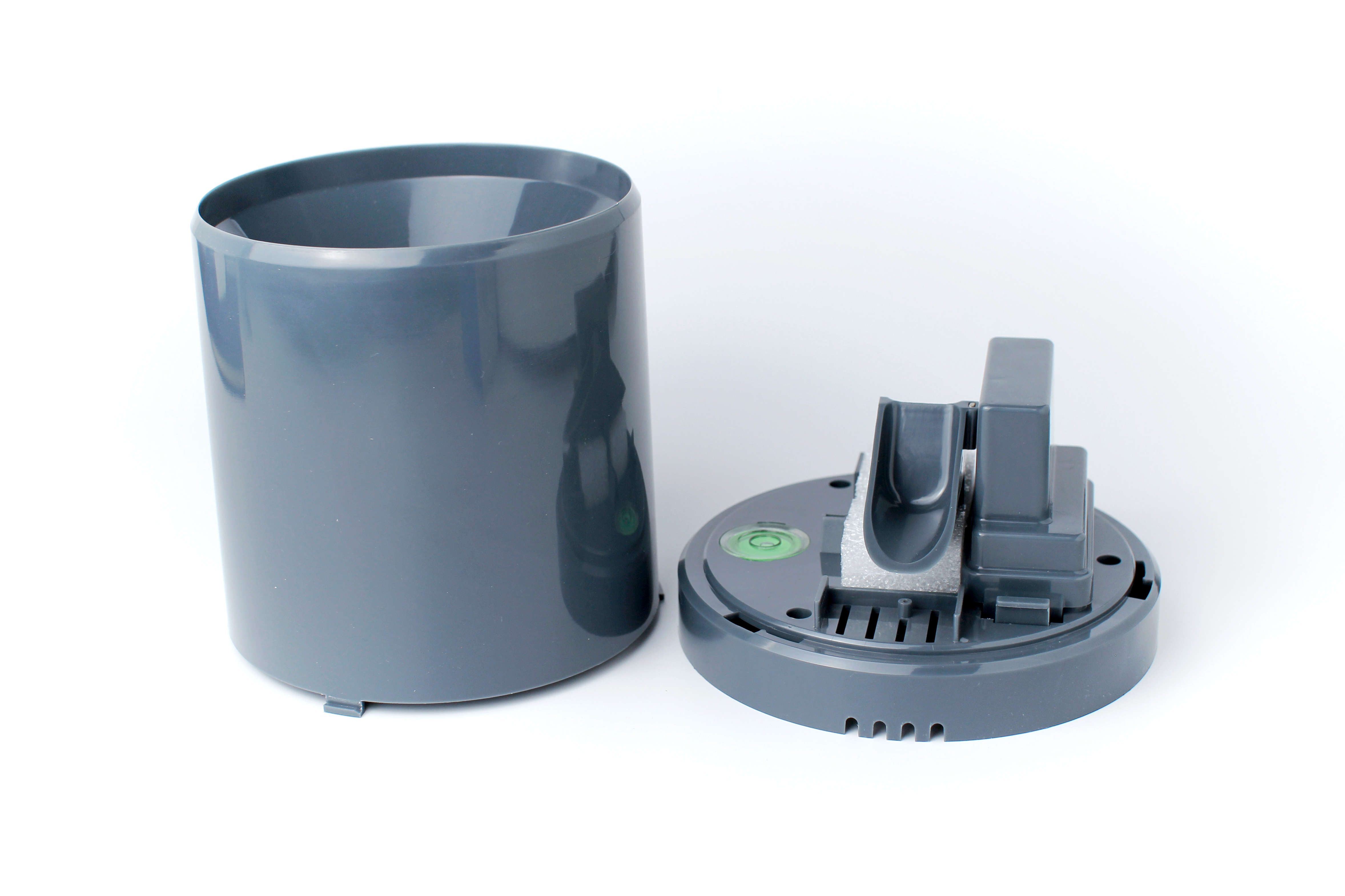

This rain gauge uses a tipping bucket to measure the rainfall amount at the sensor's location in milliliters and transmits this data, along with the temperature, every 15 minutes with an accuracy of 0.5 mm water column. In the event of heavy rainfall exceeding 15 l/h, a heavy rain alarm is triggered promptly. Both the heavy rain threshold and the measurement interval are configurable.

The device is completely open source and hardware and firmware can be downloaded via https://github.com/aqua-scope/lorain .
The device is controlled via LoRaWAN commands. It operates as a LoRaWAN Class A device. Use of the device requires LoRaWAN network coverage. Otherwise, a separate LoRaWAN gateway must be installed and operated. The device is powered by two AAA batteries. The included VARTA batteries provide a runtime of approximately two years. A low battery level is reported wirelessly, allowing for battery replacement before the device shuts down.
  • Platform: STM32WLE5CCU6 in RAK 3172 module

Wireless connection:

  • LoRaWAN 1.0.3
  • Join: OTAA
  • Class: A
  • Frequency: EU868
  • Range: > 2km (TX 22 dB)

Measurements:

  • Rain: Accuracy: 0.5 mm or 0.5 l/m3; Measurement period: 15 minutes
  • Temperature: Accuracy +/- 3 degrees; Measuring range: -25 °C … 50 °C
  • Status report: every 6 hours if no rain has fallen, otherwise every 15 minutes. Heavy rain alarm: from 15 liters/hour, threshold configurable.

User interface:3-color LED, single push button

Power supply:

  • 2 * AAA batteries
  • Voltage: 2.2 … 3.6 V

Environmental conditions:

  • Transport and storage: -65 °C … 125 °C
  • Operating temperature: -20 °C … 50 °C
  • Relative humidity: 0...90%

Water protection:IP 55

  • Dimensions: 132x132x139 mm
  • Packaging: 140x140x150 mm
  • Weight: 219 gr.
  • Detailed instructions for the installation and connectivity of Aqua-Scope products can be found here .

Do you have a question about the product? Feel free to contact us:

  • Main unit
  • 3 * Mounting screws and dowels
  • 2 * AAA batteries

Here you will find the declaration of conformity for the Aqua-Scope products.
