By Aqua-Scope

Ultrasonic clamp - water leak detection (Wi-Fi)

€299,00
€299,00
Tax included. Shipping calculated at checkout.
ConnectivityWi-Fi
power supply5V USB-C and 2xAAA batteries
Installation locationWater pipe strap-on
App SupportAqua-Scope Web App
Availability:
SKU: AQMWIE01
EAN: 4251295783444
Aqua-ScopeUltrasonic clamp - water leak detection (LoRaWAN)

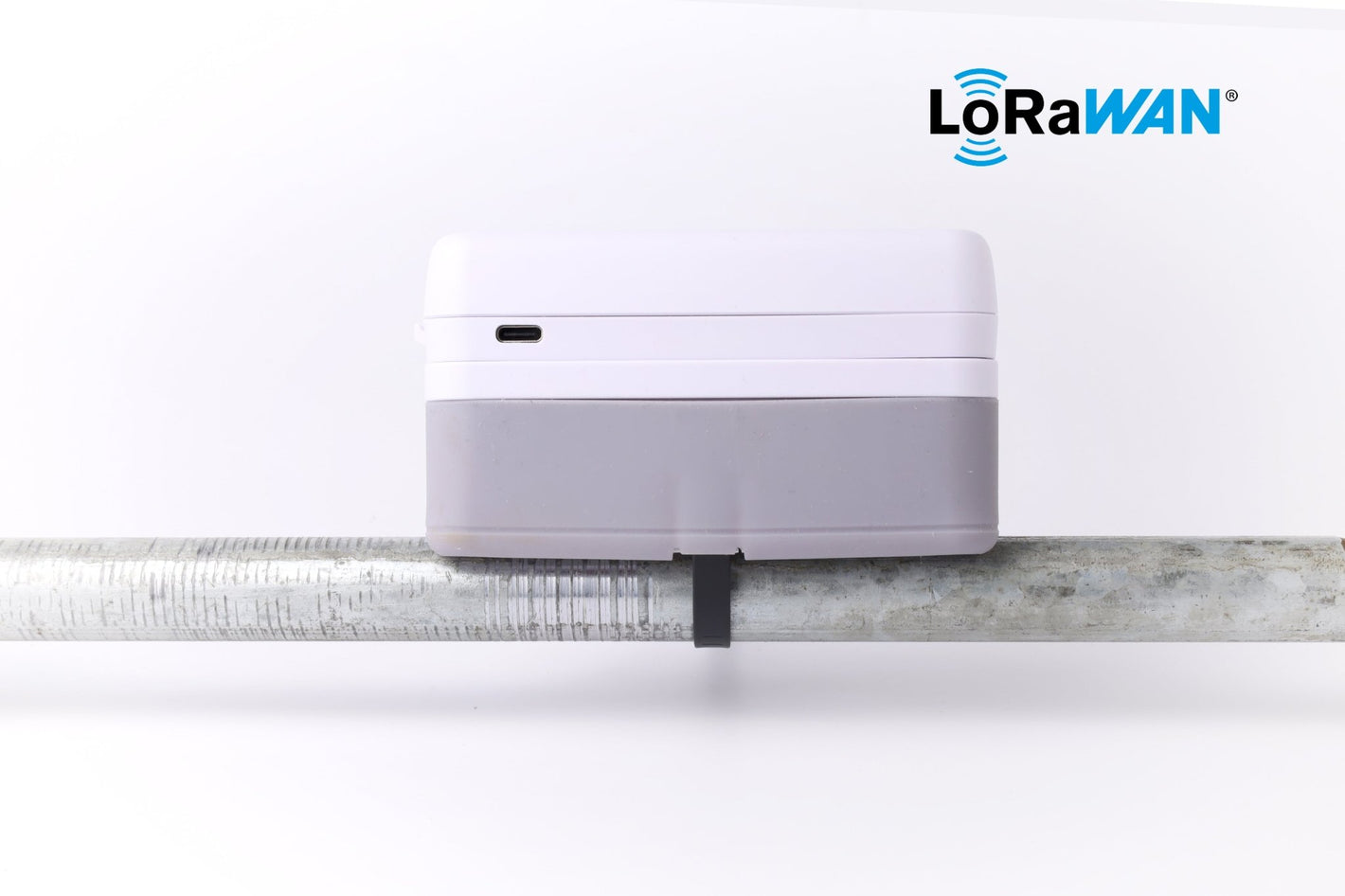

Ultraschallklemme - Wasser - Leckageerkennung (LoRaWAN) - Aqua - Scope - Heim & Garten > Feuer - & Gasschutz > Wassermelder > Sensor - und Warnsysteme - Aqua - Scope
Wasserdrucksensor (LoRaWAN) - Aqua - Scope - Aqua - Scope
Aqua-ScopeWater Leakage Sensor (LoRaWAN)
Ultraschallklemme - Wasser - Leckageerkennung (WLAN) - Aqua - Scope - Aqua - Scope
€299,00
€299,00

The water sensor clamp uses a "time-of-flight" measurement method to measure the flow rate and temperature in a water pipe and transmits the data wirelessly. An internal analysis of the flow rate detects water leaks and other anomalies, alerting the owner.

The device is clamped onto the outside of the water pipe without interrupting the water supply. Its flexible design and innovative software allow it to be used on water pipes between 16 and 50 mm in diameter, made from many materials currently available on the market, such as PEX, PEX AL, copper, or PE. It meets all requirements of the European Community's Metering Directive (MID). Requiring only 60 mm of space above the water pipe and measuring just 115 mm in length, the device is very flat and compact, making it easy to install.

The device can be powered either via USB-C or by two AA alkaline batteries. Whenever an external power source is available, it will be used regardless of the batteries inserted.

The system communicates via Wi-Fi and is controlled via a mobile app. Additionally, data can be sent to an MQTT server or an HTTP webhook for integration into a smart home system.

Power supply:

  • Alternatively or in parallel: External power supply or battery.
  • Power supply: 5V/2A USB-C
  • Battery: 2 * AA, replaceable

Communication:

  • WLAN IEEE 802.11b/g/n (2.4 GHz WIFI)
  • Aqua-Scope Cloud Protocol
  • MQTT Client
  • JSON Web Service Client
  • LoRaWAN
  • Frequency EU868 or as configured
  • Class A
  • LoRaWAN 1.0.3
  • Bluetooth 5 (LE): UART profiles

Instructions:

  • a key
  • 3 colored LEDs (red/green/yellow)

Sensor technology:

  • Method: differential "Time-of-Flight"
  • Measurement frequency: 1 MHz ultrasound
  • Signal strength: -7.5 ... 30 dB (calibratable)

Supported pipe types/pipe diameters:

  • Diameter: 15 ... 56 mm
  • Pipe materials: PEX, PEX AL, normal steel, copper, PP, PE

Response thresholds of the measuring system:

  • Minimum sensitivity: 1 l/m - 3 l/m (adjustable)
  • Drip detection: from 0.1 l/m (calibration dependent, displayed in app)
  • Pipe burst detection: > 30 l/m (configurable)
  • Dimensions: 110mm x 60mm x 40mm
  • Weight: 310 g (without batteries)
  • Protection rating: IP 44
  • Storage/Transport: 0 ... 40 °C, 10 ... 90 % RH
  • Detailed instructions for the installation and connectivity of Aqua-Scope products can be found here .

Do you have a question about the product? Feel free to contact us:

  • Measuring clamp main unit (without batteries)
  • USB-C power cable and power adapter
  • additional contact pads
  • Cable ties for installation
  • ultrasound gel
  • Pipe clamp for installation
  • 2 adapters each for different pipe diameters

Here you will find the declaration of conformity for the Aqua-Scope products.
