Rain Gauge (Wi-Fi) - Metering with App, MQTT, HomeAssistant

€59,00
€41,00 €59,00
Tax included. Shipping calculated at checkout.
ConnectivityWi-Fi
power supply2xAAA batteries
Installation locationOutdoors, exposed to the elements
App SupportAqua-Scope Web App
Availability: In stock
SKU: RANWIE01
EAN: 4251295783413
Regenmesser WLAN - Aqua - Scope - Aqua - Scope
€59,00
€41,00 €59,00

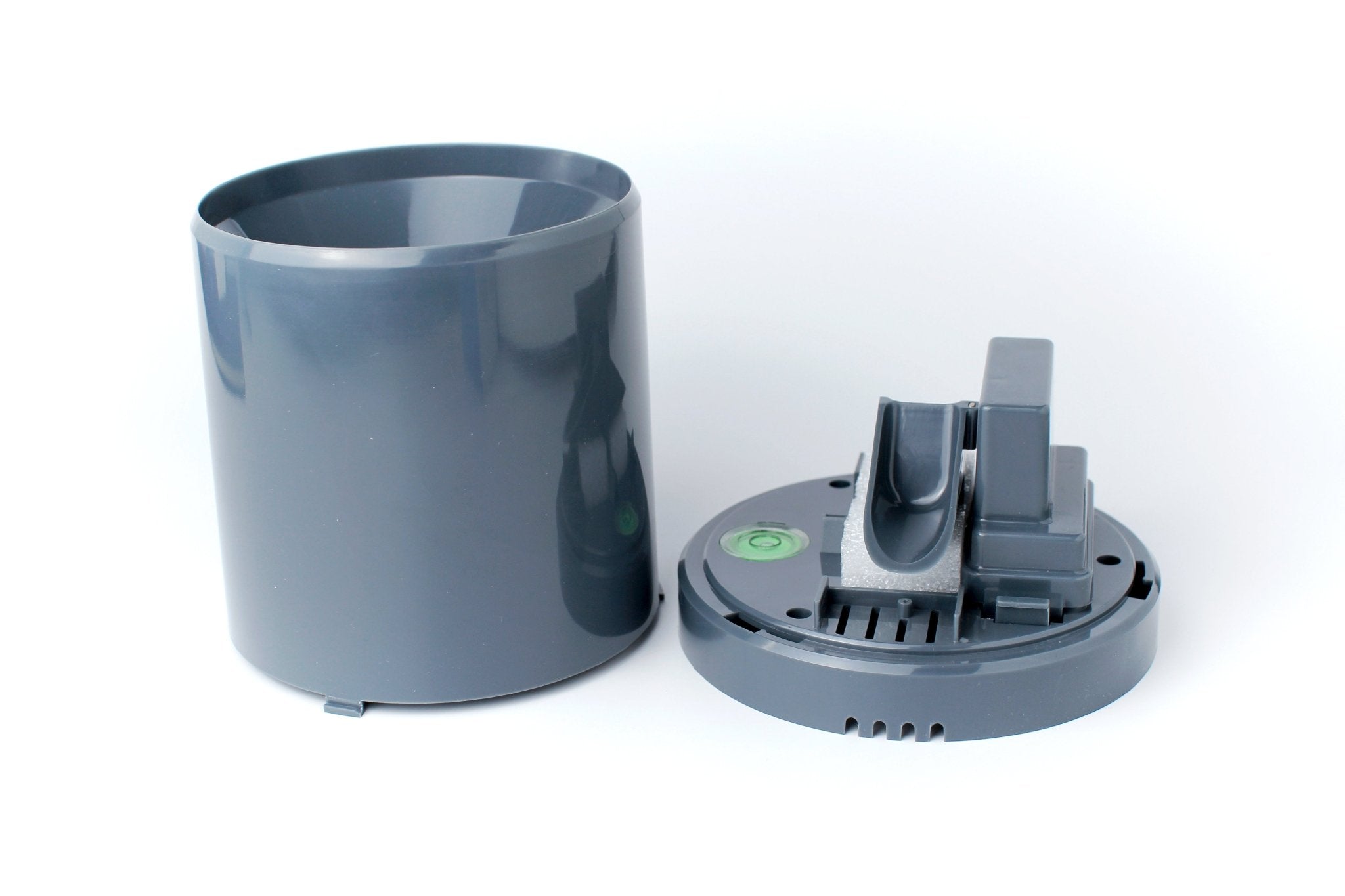

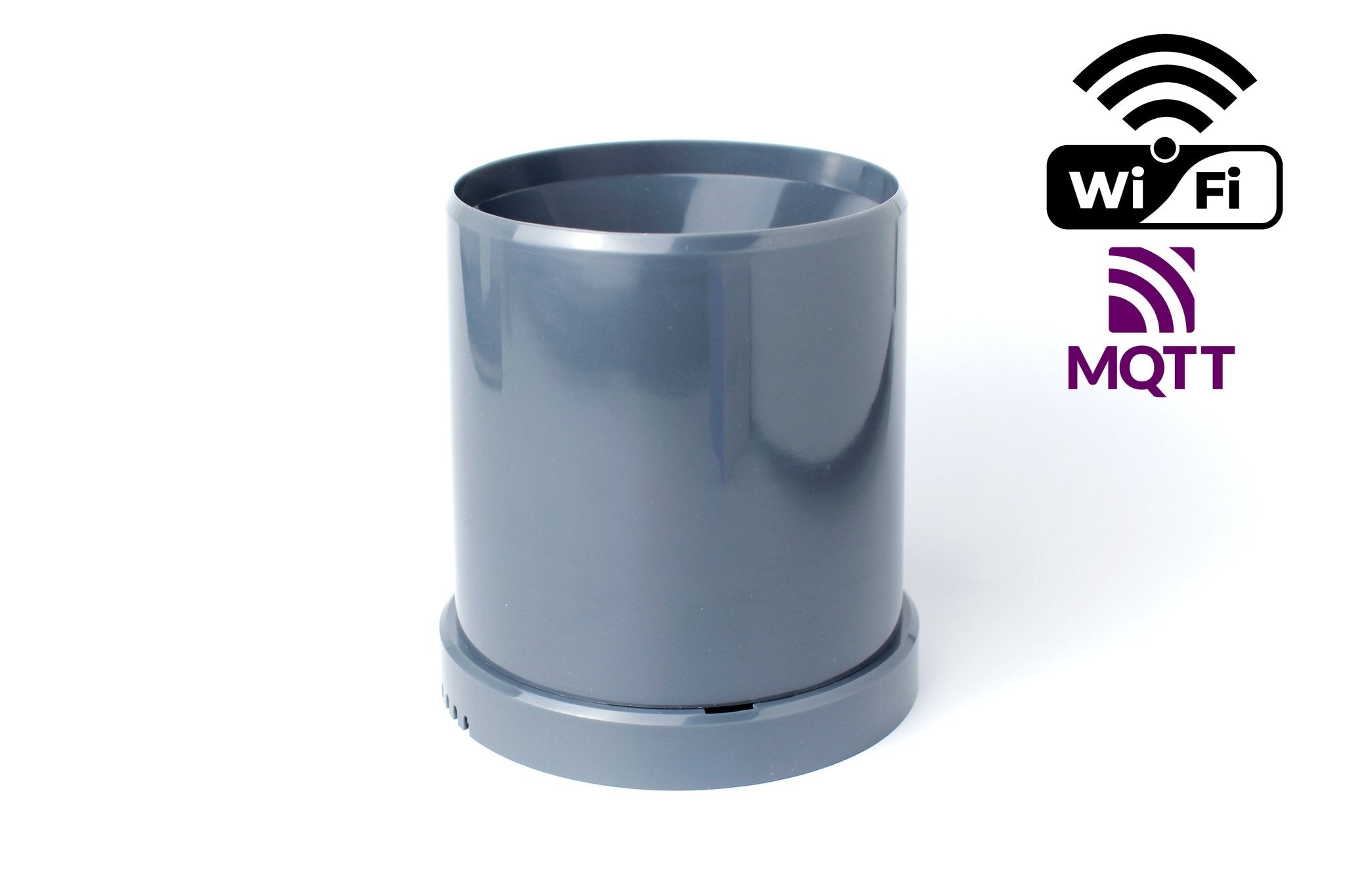

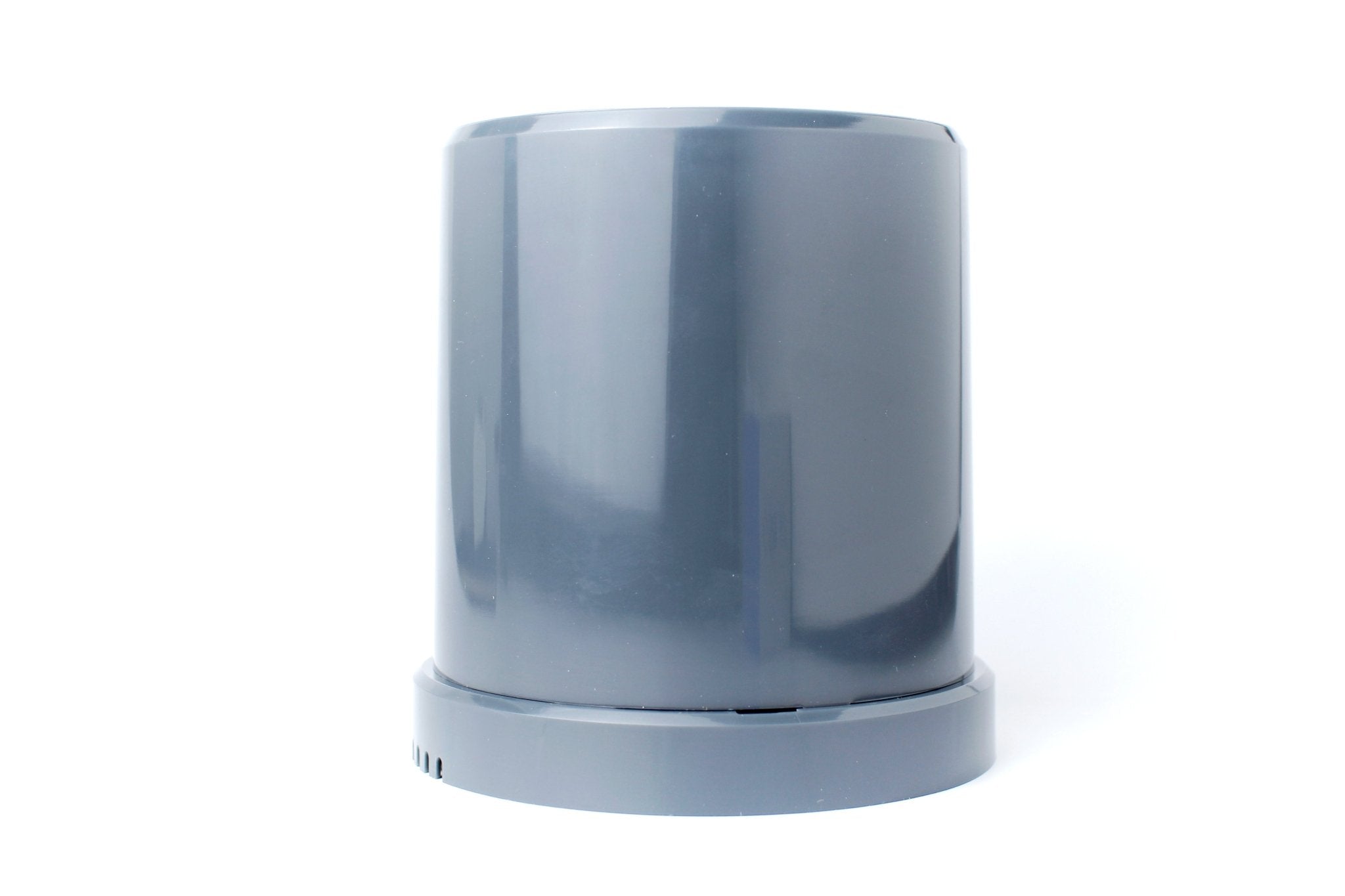

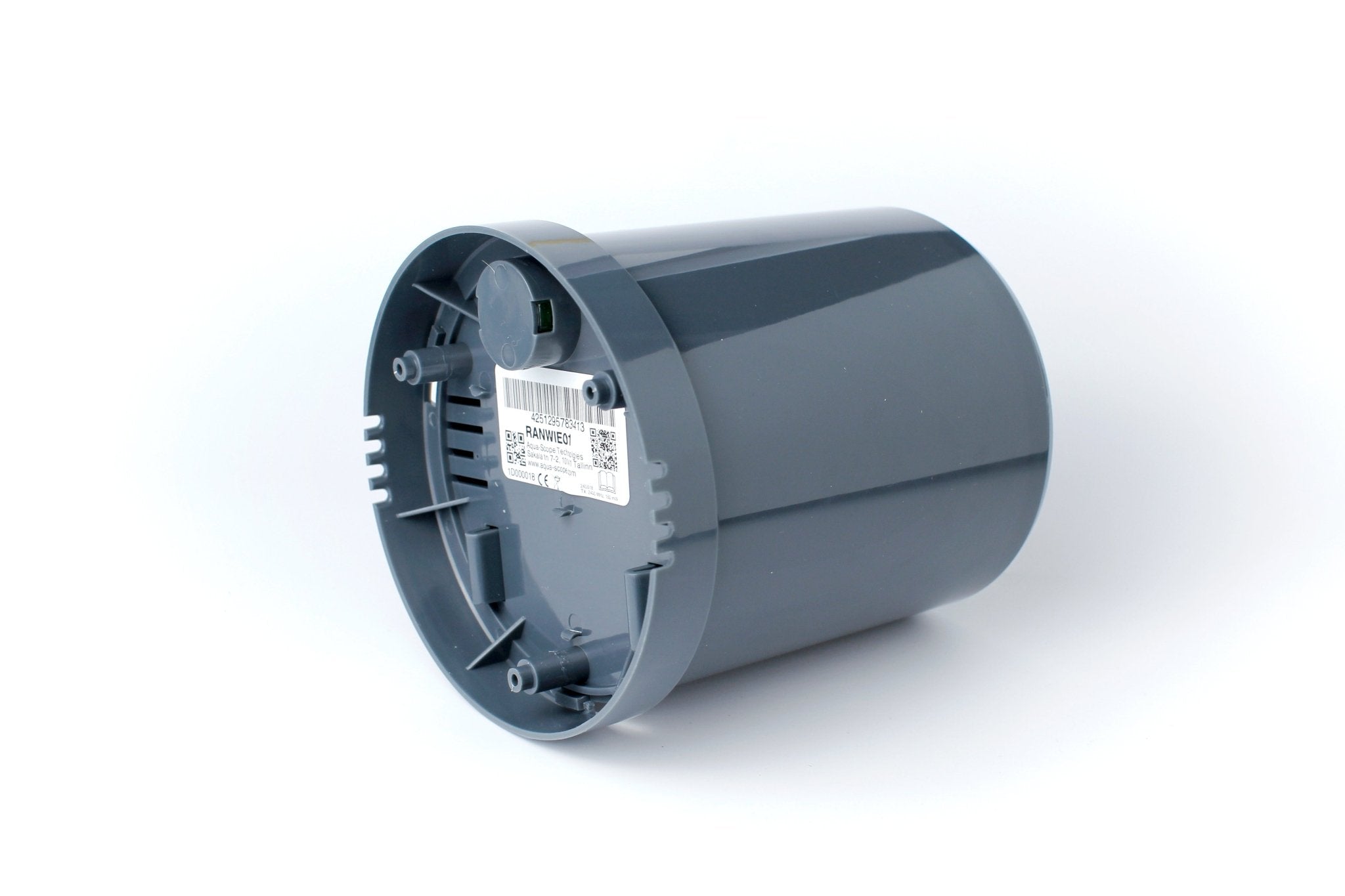

The Aqua-Scope Rain Gauge is a smart WLAN rainfall sensor for your home, garden, or property. Using precise tipping-bucket technology, it measures the amount of rainfall directly at the sensor location in milliliters and transmits the readings every 15 minutes with an accuracy of 0.5 mm of water column – along with the current temperature. This keeps you informed of rainfall and weather conditions at all times.

Built-in heavy rain alert: If rainfall exceeds 15 l/h, the rain gauge automatically triggers a heavy rain alert – ideal for protecting against flooding, waterlogged basements, or overloaded drainage systems. Both the alert threshold and the measurement interval are fully configurable.



Flexible Smart Home Integration

The rain gauge communicates via WLAN and can be connected in three ways:

  • Aqua-Scope Cloud & App – view rainfall data and alerts conveniently on your smartphone or PC
  • MQTT – connect to a server or platform of your choice
  • JSON object – direct integration with Home Assistant and other smart home systems



Built to Last

The sensor runs on two AAA batteries. The included VARTA batteries provide a battery life of approximately 2 years. A low battery status is reported wirelessly in advance, so you can replace the batteries before the device shuts down.



At a Glance

  • Tipping-bucket rainfall measurement, accuracy of 0.5 mm water column
  • Additional temperature measurement
  • Configurable measurement interval (default: 15 minutes)
  • Configurable heavy rain alert (default: from 15 l/h)
  • WLAN connectivity: Aqua-Scope app, MQTT, or Home Assistant (JSON)
  • Battery-powered: 2x AAA (VARTA included), approx. 2 years battery life
  • Wireless low-battery warning

Processor:

  • Main: ESP32-WROOM_32E (Xtensa Dual Core 32 Bit, 240 MHz, 520 KB RAM)
  • Subsystem: Xtensa 16 bit Ultra Low Power RISC

Wireless connection:WIFI 2.4 GHz 802.11 b/g/n

Measurements:

  • Rain: Accuracy: 0.5 mm or 0.5 l/m3; Measurement period: 15 minutes
  • Temperature: Accuracy +/- 3 degrees; Measuring range: -25 °C … 50 °C
  • Status report: every 6 hours if no rain has fallen, otherwise every 15 minutes. Heavy rain alarm: from 15 liters/hour, threshold configurable.

User interface:3-color LED, single push button

Power supply:

  • 2 * AAA batteries
  • Voltage: 2.2 … 3.6 V

Environmental conditions:

  • Transport and storage: -65 °C … 125 °C
  • Operating temperature: -20 °C … 50 °C
  • Relative humidity: 0...90%

Water protection:IP 55

  • Dimensions: 132x132x139 mm
  • Packaging: 140x140x150 mm
  • Weight: 219 gr.
  • Detailed instructions for the installation and connectivity of Aqua-Scope products can be found here .

Do you have a question about the product? Feel free to contact us:

  • Main unit
  • 3 * Mounting screws and dowels
  • 2 * AAA batteries

Here you will find the declaration of conformity for the Aqua-Scope products.
