Water pressure sensor (Wi-Fi)

€199,00
€57,00 €199,00
Tax included. Shipping calculated at checkout.
ConnectivityWi-Fi
power supply5V USB-C and optional battery pack
Installation location1/8 inch inspection opening (T-piece included)
App SupportAqua-Scope Web App
Availability: In stock
SKU: PREWIE02
EAN: 4251295783574
Wasserdrucksensor (WLAN) - Aqua - Scope - Heim & Garten > Feuer - & Gasschutz > Wassermelder > Sensor - und Warnsysteme - Aqua - Scope
€199,00
€57,00 €199,00

The Aqua-Scope pressure sensor records the water pressure in the drinking water distribution system or in the hot water heating system . The device consists of two parts:

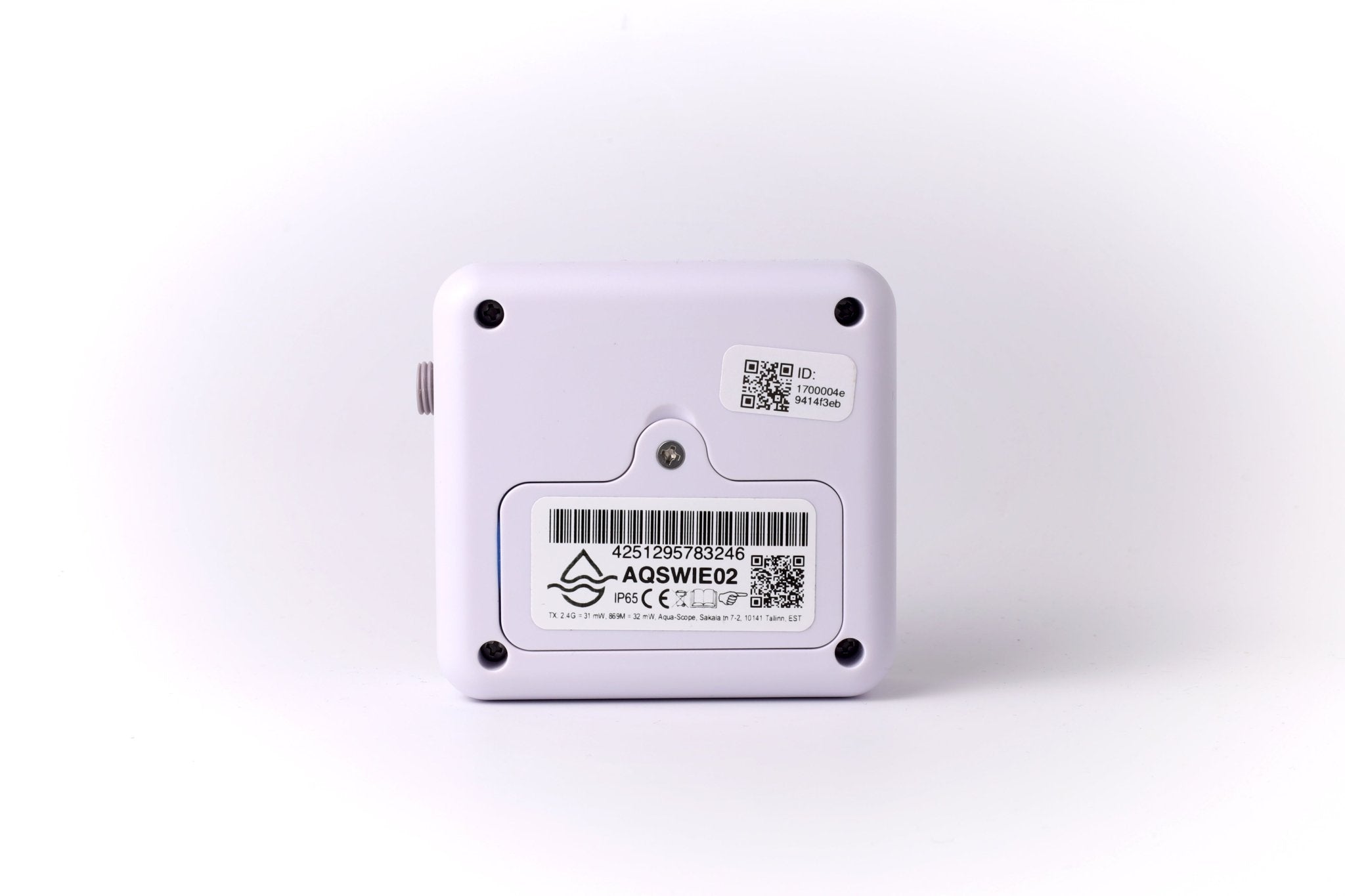

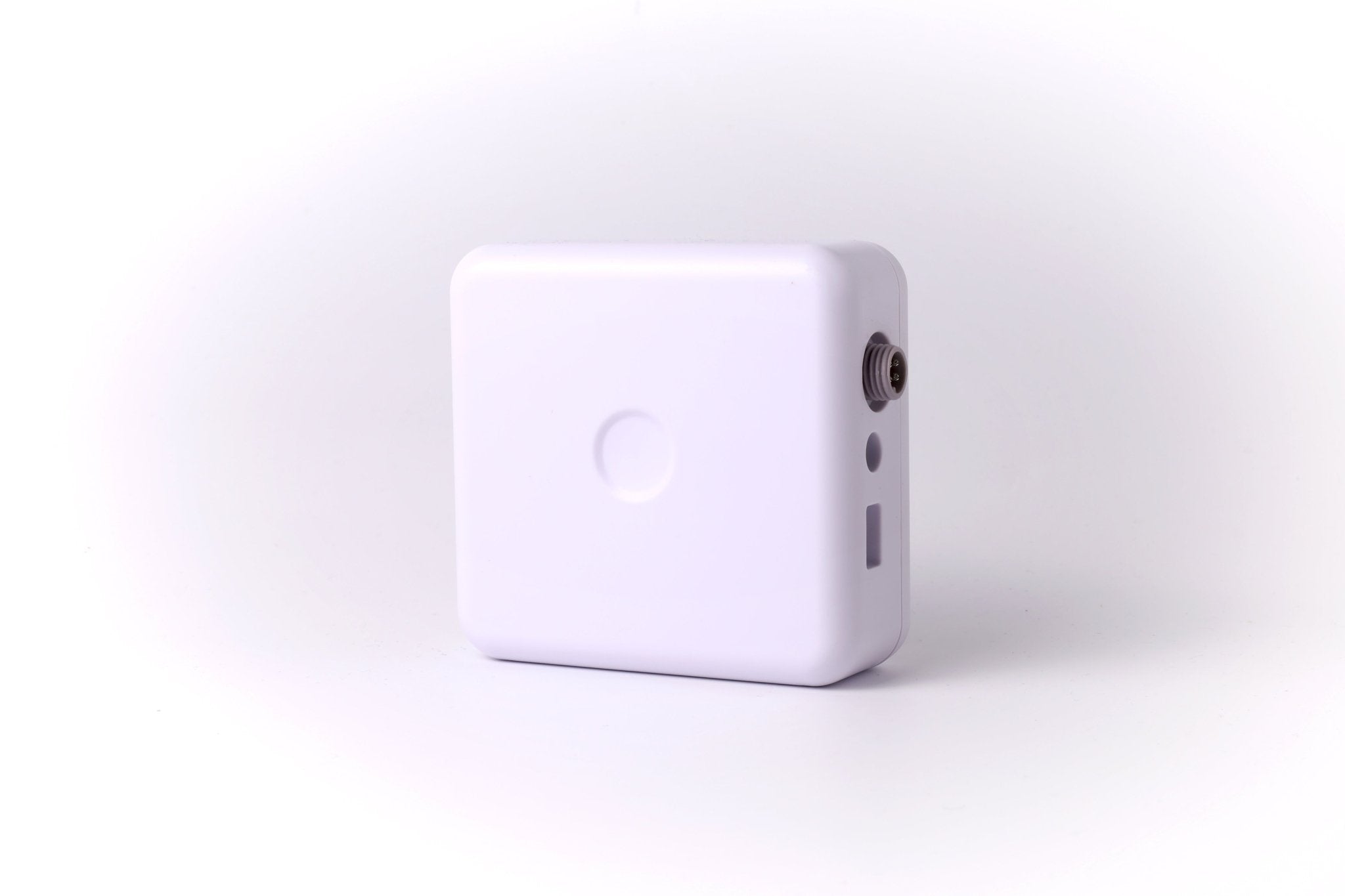

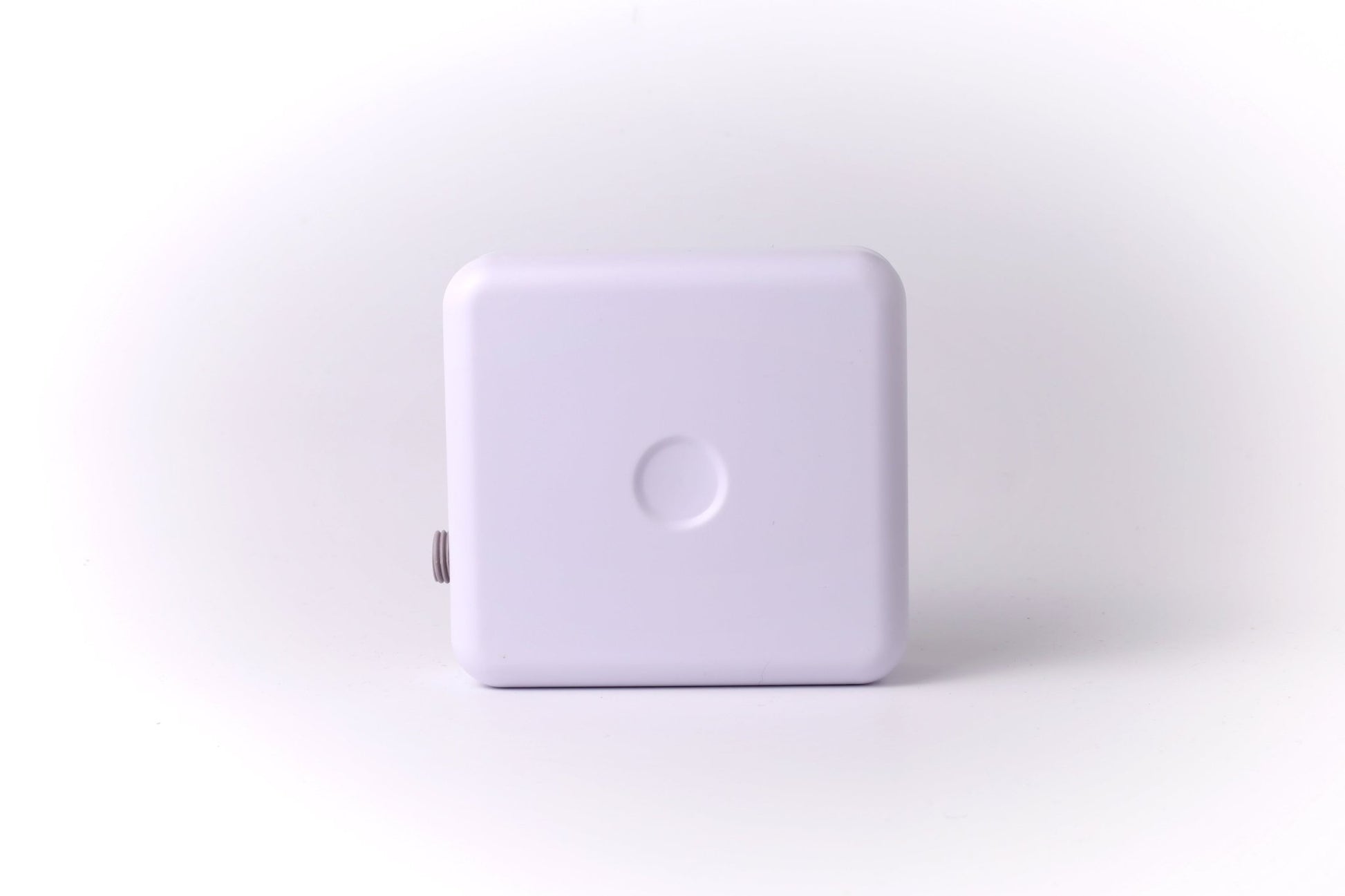

  • the main housing for signal processing and radio communication with battery compartment.
  • The external sensor head connects to the water line. Made of stainless steel, the sensor head features a silicon sensor immersed in silicone oil for highly accurate and low-noise pressure measurements. The pressure measuring range is 1 to 10 bar. The sensor head is installed anywhere in the building at a 1/8-inch access port or, using the included T-fitting, under any sink at the angle valve.

The sensor can send an alarm message if user-defined thresholds are exceeded or fallen below. The sensor's polling frequency is adjustable from 0.1 seconds to several minutes and determines the battery life. A battery life of approximately 10 years is calculated for a 1-second measurement interval.

The device communicates via WLAN , either to the Aqua-Scope Cloud and thus to a free app on your mobile phone or PC, or via MQTT to a server of your choice, or as a JSON object to a Smart Home Gateway.

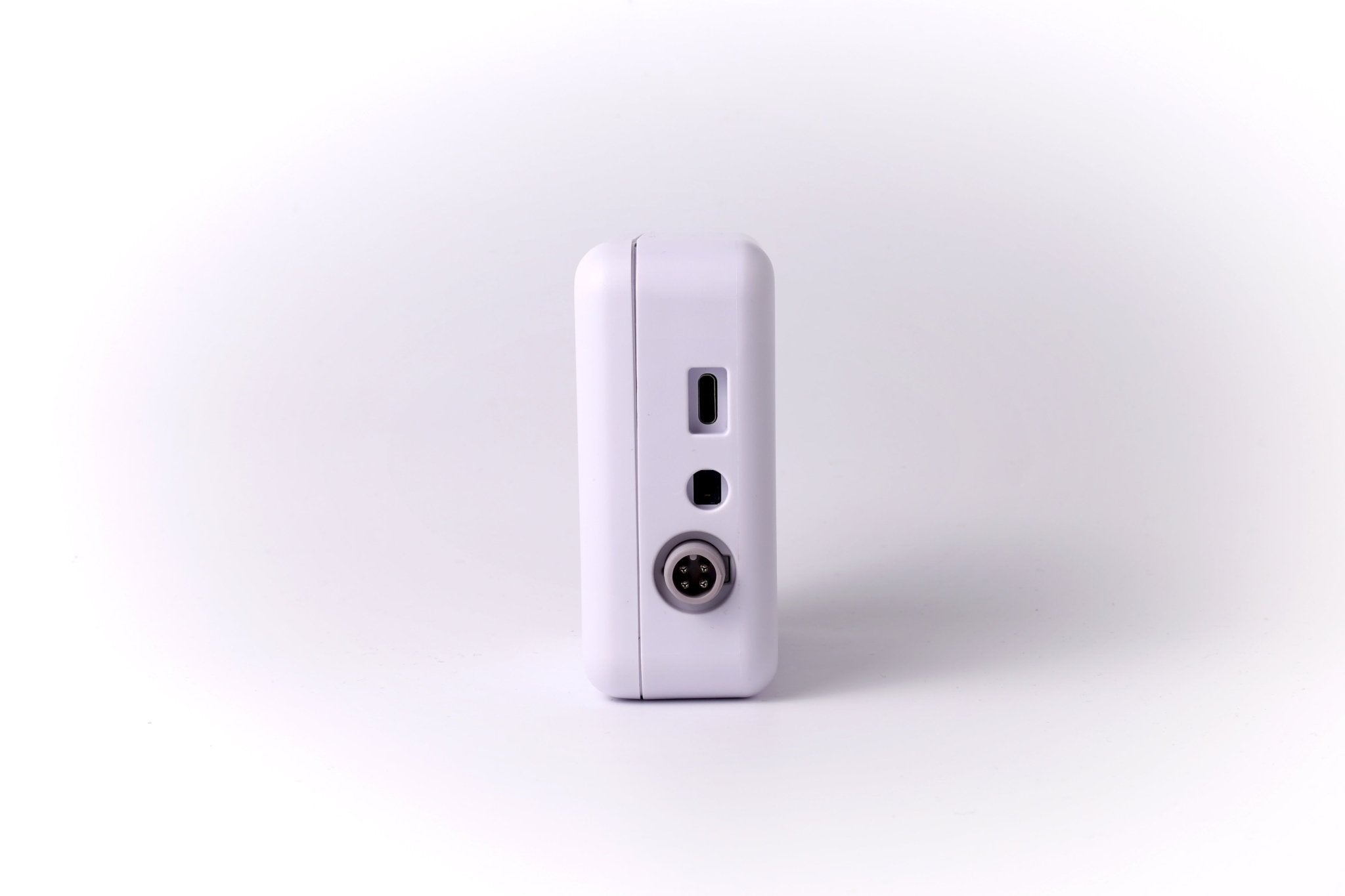

The sensor is powered either by an external power supply via a USB-C power adapter or by an optional internal ER26500 battery (Bobbin Cell C). Both the sensor head (IP67) and the main housing (IP65) are waterproof and can be used outdoors or in particularly humid and/or dirty environments.

  • Power supply: External USB plug-in power adapter 5V/1A
  • Battery: Bobbin CellC ER26500, Lithium-Thionyl Chloride
  • Processor: ESP32-WROOM_32E (Xtensa Dual Core 32 Bit, 240 MHz, 520 KB RAM)

radio connection:

  • WLAN IEEE 802.11b/g/n (2.4 GHz WIFI) Aqua-Scope Cloud Protocol; lMQTT Client;JSON Web Service Client
  • Bluetooth 5 (LE)UART Profile

Measuring head:

  • Measuring range: 0 … 1000 kPa (10 bar)
  • Overload: 150 percent of the maximum pressure
  • Screw connection: G ¼ “ female
  • electronic communication: I2C
  • Accuracy: < 1 percent dynamic
  • Built-in temperature sensor
  • Dimensions (main unit): 91 mm x 91 mm x 30 mm
  • Weight (main unit): 105 g
  • Weight (measuring head): 140 g
  • Detailed instructions for the installation and connectivity of Aqua-Scope products can be found here .

Do you have a question about the product? Feel free to contact us:

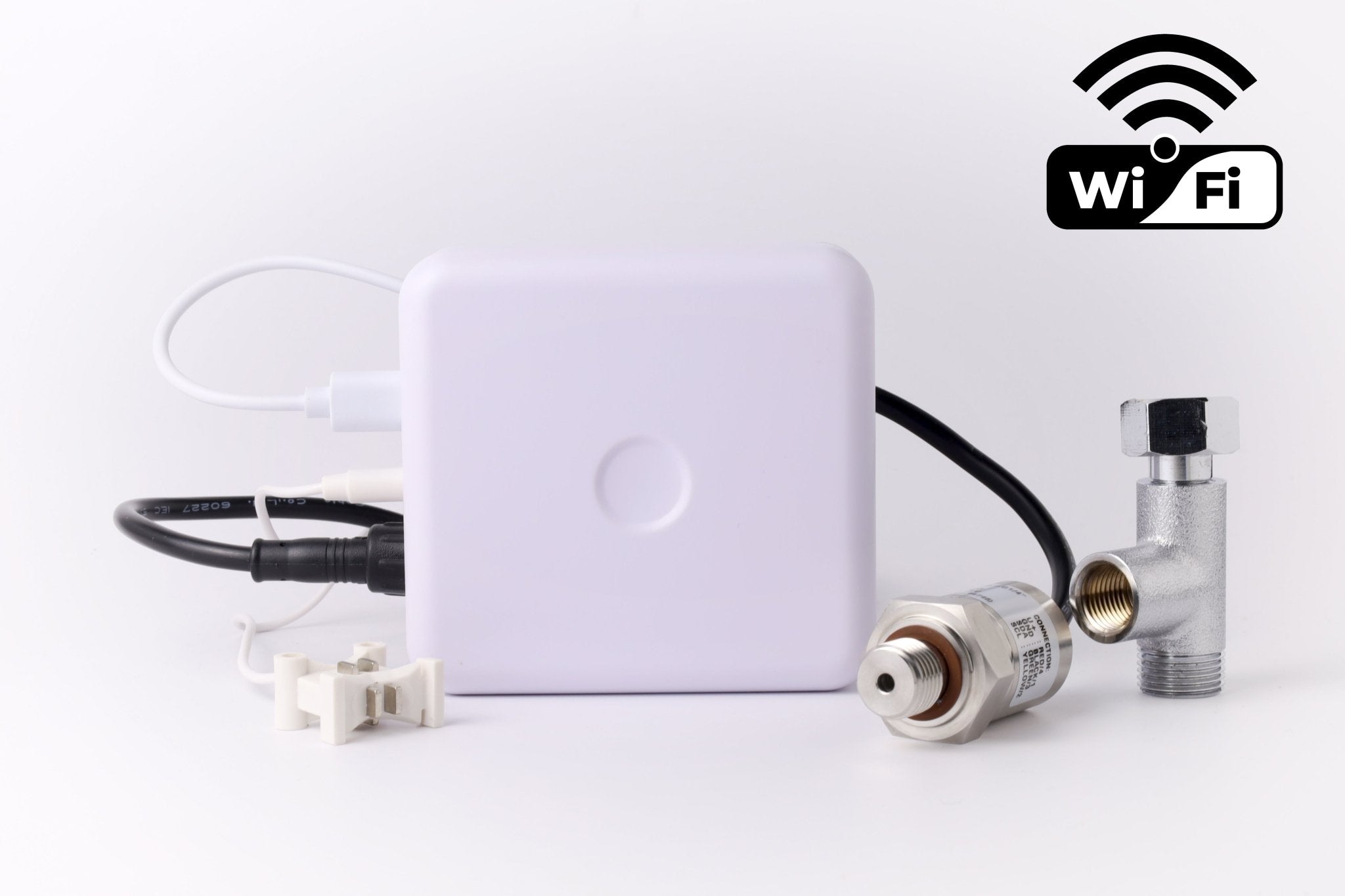

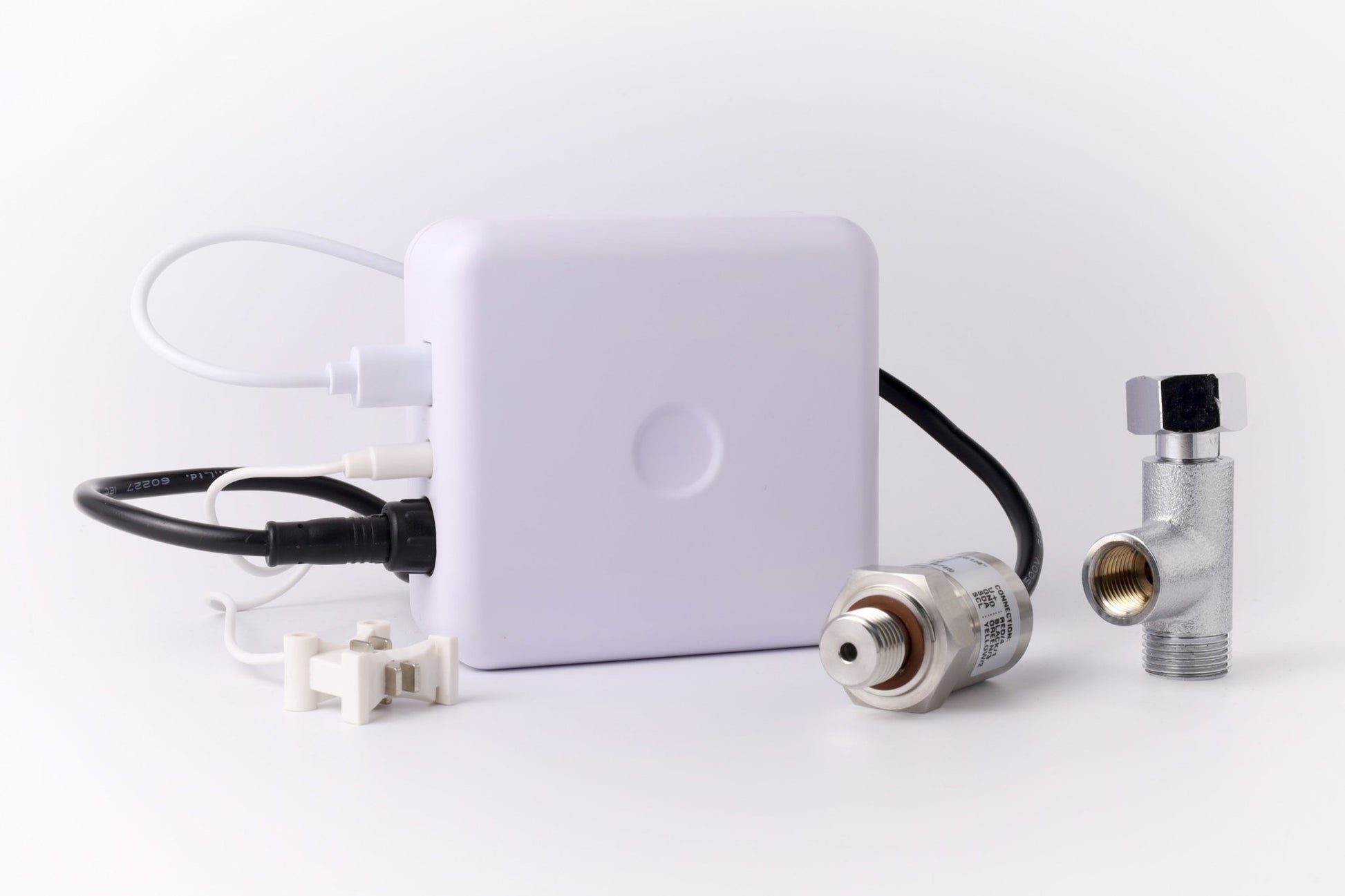

  • Water monitor main unit (without battery)
  • Aqua-Scope sensor head with 80 cm cable
  • 3/8-inch water pipe connection (T-shape)
  • Flood sensor with 130 cm cable and audio jack
  • USB-C power cable and power adapter
  • 19 mm wrench for loosening and tightening the 3/8 inch connections of the pipe connector

Here you will find the declaration of conformity for the Aqua-Scope products.
